eMDX

Switch to Autonomy

Seamless switch to electric

Requirements of urban worksites as well as the habits of operators have been taken into account to develop the Mecalac eMDX site dumper so that the machine autonomy and productivity are not impacted.

With a record battery capacity of 75 kW.h, the eMDX can operate intensively for a minimum of 8 hours non stop. Only 4 hours are required to charge the battery. The eMDX unrivalled 8-hour autonomy can be achieved thanks to the battery's power and heat management technologies. In your jobsite, this autonomy can translates into dozens of additional hours as site dumpers are mainly used on a periodic basis with frequent machine stops.

eMDX

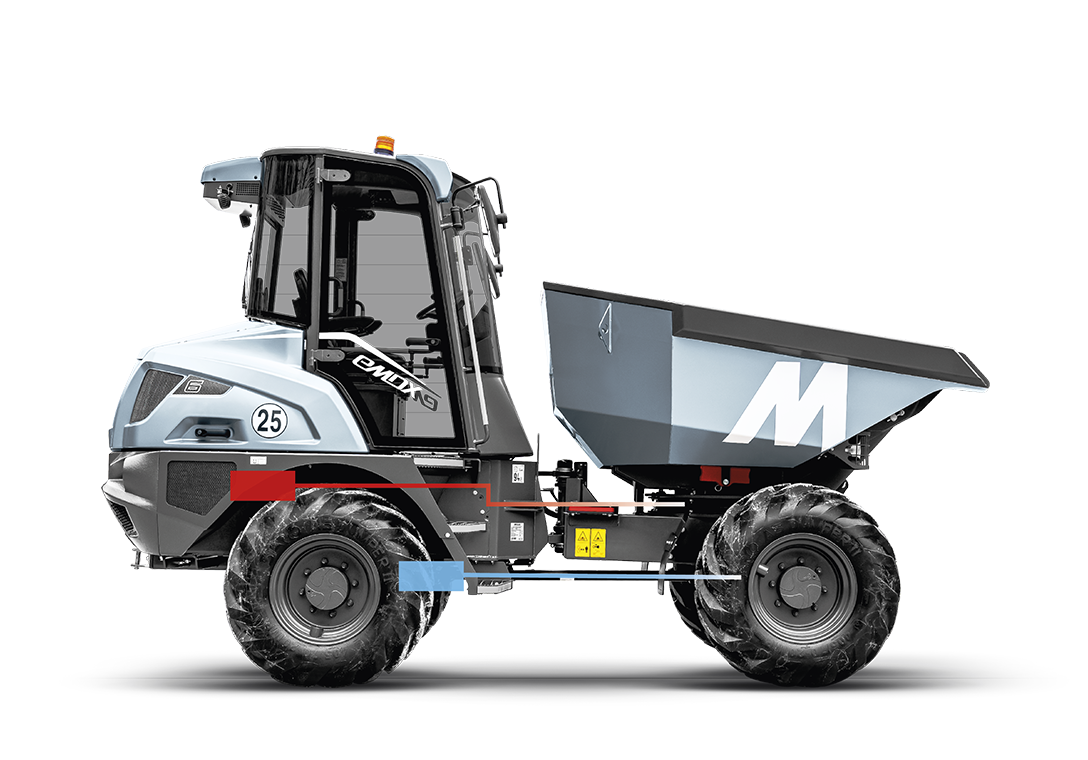

Switch to Performance

Largest 100% electric site dumper

Unlike “mini” electric site dumpers available on the market, Mecalac has focused its R&D investment to offer an emission-free solution for transporting materials on a scale never before achieved. The result is the Mecalac eMDX, the first 6-ton electric site dumper with uncompromising levels of autonomy, performance and safety.

The automatic transmission ensures that all the power of the electric motor is transmitted to the permanent four-wheel drive, for unrivalled power and efficiency on all terrains.

6 tons

2 electric motors:

• ---- 1 for the transmission
• ---- 1 for the skip and hydraulics

MDX-Series Cab: designed & tested to withstand impact

eMDX

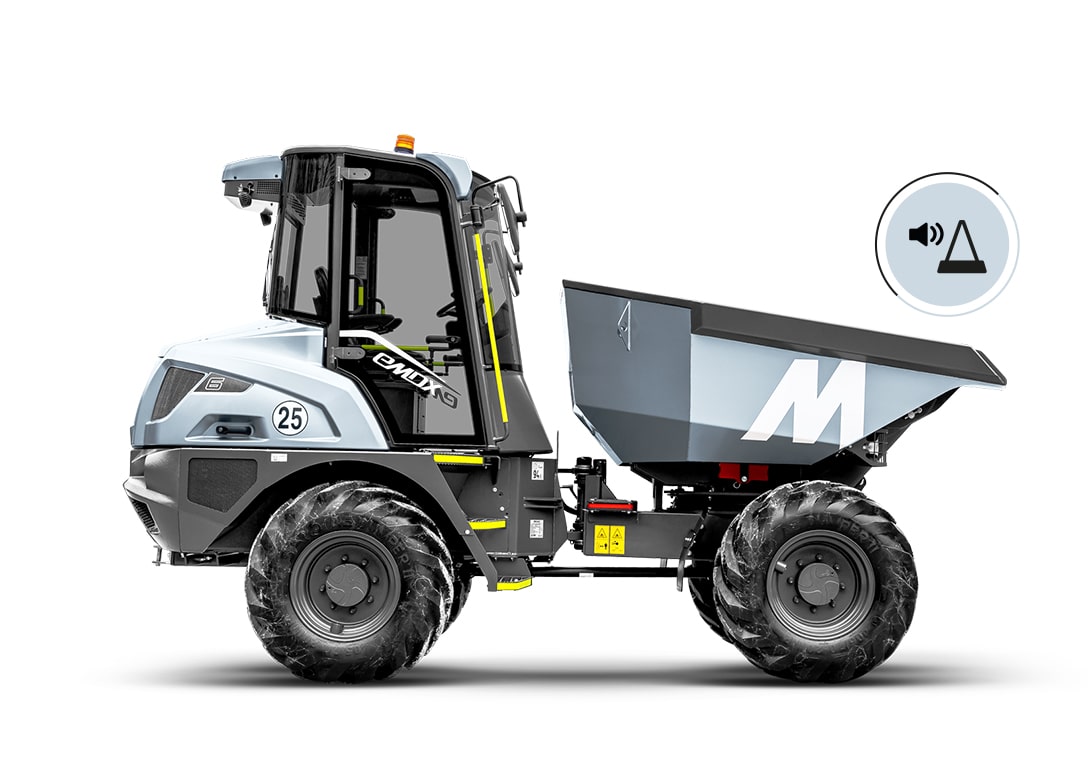

Switch to Safety

The safest cabbed dumper got even safer

In addition to the ROPS/FOPS certification, the cab of the eMDX has been tested by Mecalac to withstand impacts while loading the dumper skip. A series of front and side impact tests have been performed using different excavator swing speeds to simulate real impacts that could occur. The eMDX cab has proven to be highly resistant to potential impacts, reinforcing our leadership position in terms of safety.

Mecalac's design features ensure enhanced safety with easier machine access, excellent all-around visibility, and a higher level of operator protection. Adding to this, an advanced object detection radar identifies potential hazards in front of the machine, maximizing safety standards.

Specifications

Total operating weight	5325 kg (11.740 lbs)
Rated storage capacity	75 kWh
Power supply	32A 380V three phase (22kW)
Battery runtime	8 hrs (depending on the application time)
Skip type	Swivel
Payload	6000 kg (13,228 lbs)
Maximum skip capacity (Heaped)	3085 l (815 US gal)
Transmission	Automatic, with electric motor via gearbox to both axles
Travel speed	25kph (15.5mph)
Operator environment	ROPS / FOPS Cab
Overall width	2211 mm (7’3’’)
Overall length	4711 mm (15’5’’)
Overall height	2875 mm (9’5’’)
Dumping height, skip tipped	1126 mm (3’8’’)
